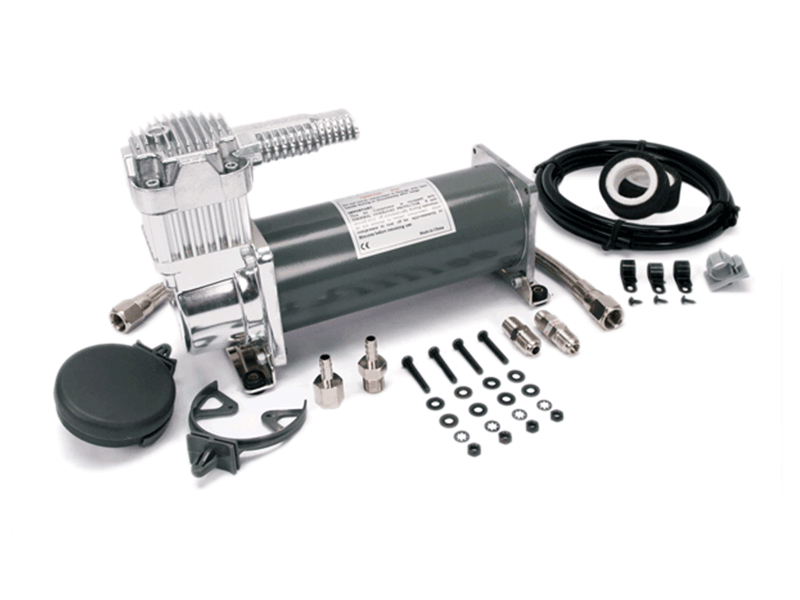

Viair 450C 24V

$349.00

Industrial Grade (IG) compressors are specifically designed to fill air reservoir tanks and feature a head assembly that includes a newly-developed, patents pending innovative head design for better heat dissipation. All IG compressors are certified CE spec. and feature outstanding sealing properties to the elements. Additionally, all IG compressors are equipped with a separate stainless steel braided PTFE-lined leader hoses and check valve assembly that protects the compressor against high amperage restarts.

air tank icon



Included Parts:
- Vibration Isolators
- Mounting Hardware
- 1/4" Quick Connect Stud
- Heavy Duty 1/4" NPT Check Valve
- Stainless Steel Braided Leader Hose
- Air Line for Remote Mount Air Filter
- Remote Mount Air Filter Assembly
- (2) Replacement Air Filter Elements
- Installation Instructions

- 12-Volt / 24-Volt
- Permanent Magnetic Motor
- Duty Cycle: 100% @ 100 PSI
- Max. Working Pressure: 150 PSI
- Max. Air Tank Size: 5.0 Gallon
- Max. 12V Amp Draw: 23 Amps
- Max. 24V Amp Draw: 13 Amps
- Dimensions: 11.25"L x 4"W x 6.75"H
- Net Weight: 10.40 lbs.

User Manual
Dimensional Drawings
Wiring Diagram
