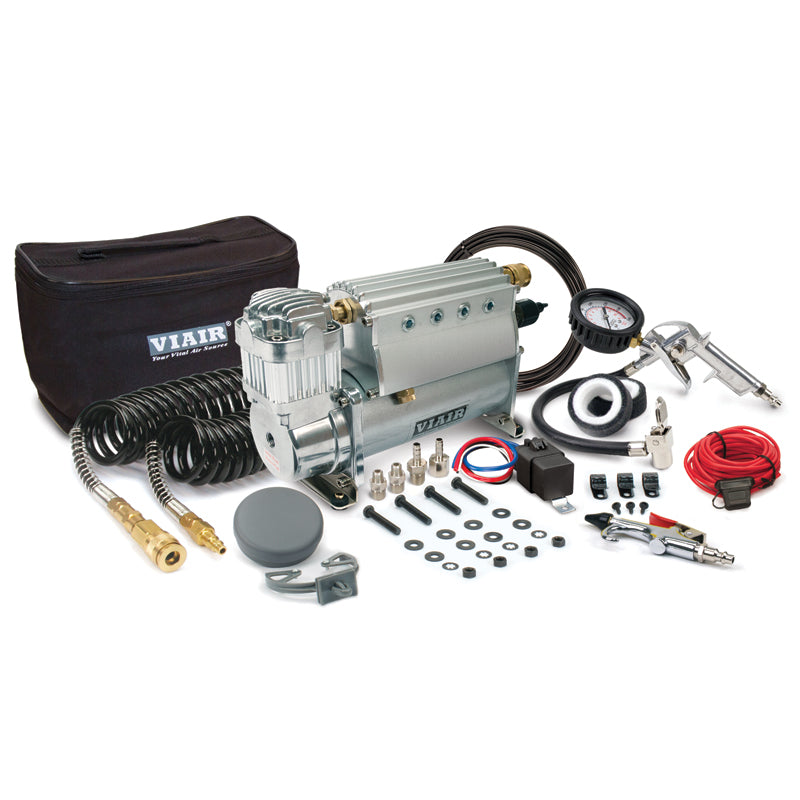

Viair 50001 Escapade Heavy Duty Ultra Compact Onboard Air System
$680.00 $780.00
VIAIR’s Escapade Heavy Duty Compact Onboard Air System is a compact, pre-packaged compressed air solution that features an industry-leading, 150PSI rated, 33% duty 400C compressor, an extruded aluminum tank, and all components needed to install a working system capable of tire inflation and air locker actuation. This OBA System comes complete with an onboard pressure switch, automatic coupler and a tire Inflation Kit.
| 400C 150 PSI VIAIR Compressor w/ Thermal Overload Protector (1) |
| – Extruded Aluminum Air Tank (1) |
| – Sealed Pressure Switch (110 PSI on, 145 PSI off) (Pre-installed) (1) |
| – Sealed 40-Amp 4-prong Relay with pre-wired female socket (1) |
| – 40-amp Relay Sealed 4-prong relay w/pre-wired female socket (1) |
| – Tire Inflation Gun with 160 PSI Gauge (1) |
| – 30ft. Coil Hose with Quick Connect and Stud (1) |
| – Rubber Tipped Blow Gun (1) |
| – Quick Connect Coupler (Pre-installed) (1) |
| – 1/4″ 175 PSI Safety Valve (Pre-installed) (1) |
| – 1/4″ NPT Plugs Kit (Pre-installed) (1) |
| – 1/8″ Drain Cock (Pre-installed) (1) |
| – 1/4″ NPT to 1/8″ BSP Adaptors (2) |
| – Air Filter Housing w/ Replacement Air Filter Elements (1) |
| – 20ft. Freeze Resistant 12-Gauge Wire w/ Inline Fuse Holder (1) |
| SPECIFICATIONS |
|---|
| – 12-Volt |
| – Permanent Magnetic Motor |
| – Duty Cycle: 33% @ 100 PSI |
| – Max. Working Pressure: 150 PSI |
| – Max. Amp Draw: 30-Amps |
| – Ingress Protection Rating: IP67 |
| – Max Ambient Temp: +158°F |
| – Min Ambient Temp: -40°F |
| – Dimensions: 9″L x 4″W x 6.75″H |
| – Net Weight: 10 lbs. |
| – |
| – |
| – |
FILL RATES
| 31” X 10.5” | FILL RATE |
|---|---|
| 0 to 30 PSI | 3 min. 00 sec. (± 10 sec.) |
| 15 to 30 PSI | 1 min. 35 sec. (± 05 sec.) |
| 33” X 12.5″ | FILL RATE |
| 0 to 30 PSI | 4 min. 20 sec. (± 10 sec.) |
| 15 to 30 PSI | 2 min. 05 sec. (± 05 sec.) |
| 35” X 12.5” | FILL RATE |
| 0 to 30 PSI | 5 min. 20 sec. (± 15 sec.) |
| 15 to 30 PSI | 2 min. 45 sec. (± 10 sec.) |
