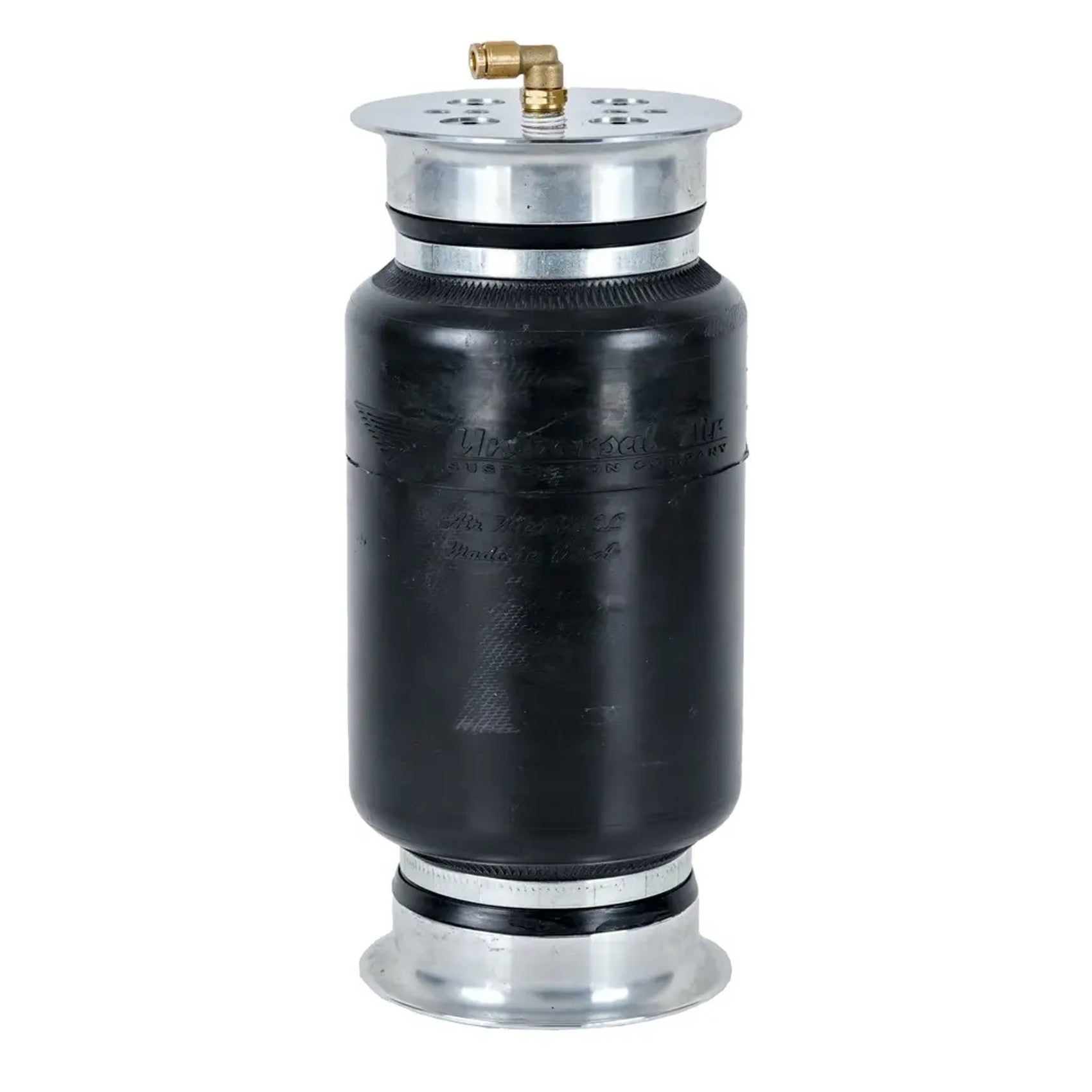

Air House Mini XXL U9000 Air Spring With Beadplates

$370.00

The Air House Mini XXL was designed to be a Direct Replacement for the F9000 but out perform.  With up to 30% more Load Capacity then your standard F9000 in a smaller package.  Solid Aluminum Caps & Bead plates.  5.25" diameter for extra clearance.With a 4.25" Collapsed, and an Impressive 15" Extended height,  results in 11.75" of available bag travel.  With rolling both Top and Bottom Results in a higher angle capacity and cap misalignment compared to a standard 9000.  Aluminum Threads in the bead plates on top of the extended travel will keep your bottom inserts from being pulled out.Single bellow construction greatly increases the stability of the air spring allowing for increased angle and load applications without the banana center kick out.Maximum Outside Diameter when compressed is 5.25" and will shrink down to about 5.125" when inflated.

Specifications:

  • 4.25" Collapsed Height
  • 15" Extended Height
  • 5.25" Max Diameter
  • 1/4" NPT Port
  • 5.5" - 9.5" Optimum Ride Height
  • Up to 1900 Lbs. Force at 115 PSI
  • Heavy Duty Thick Rubber Construction
  • 537 PSI Tested Burst Pressure
  • Front or Rear Installation
  • Straight or Angled Installation
  • Industry Standard Bolt Pattern
  • Machined 6061 Aluminum Caps
