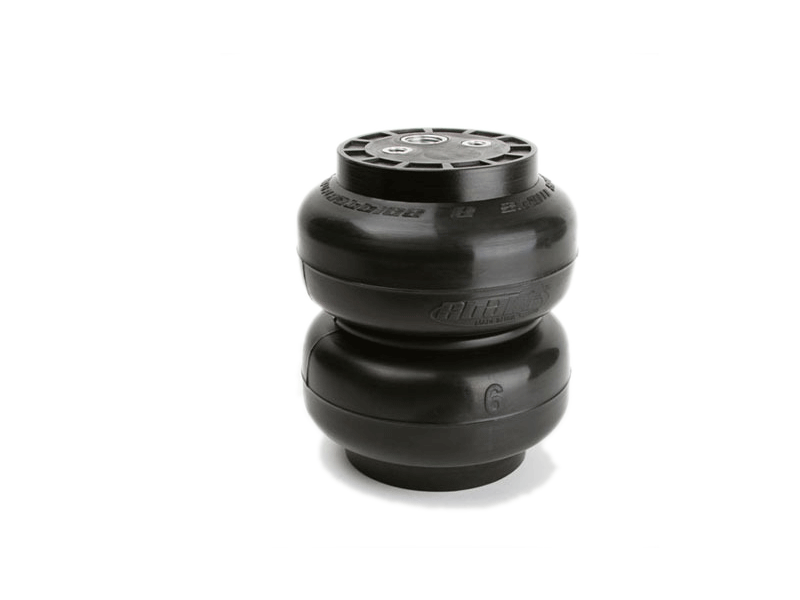

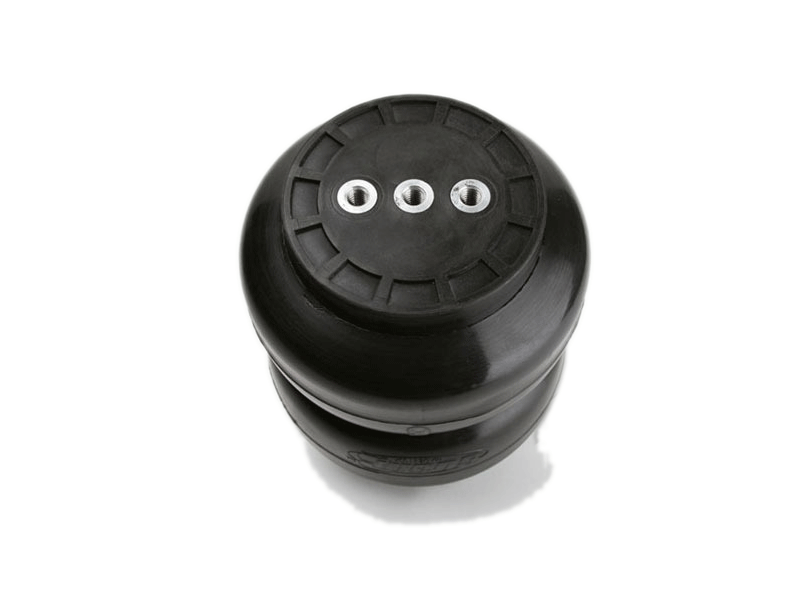

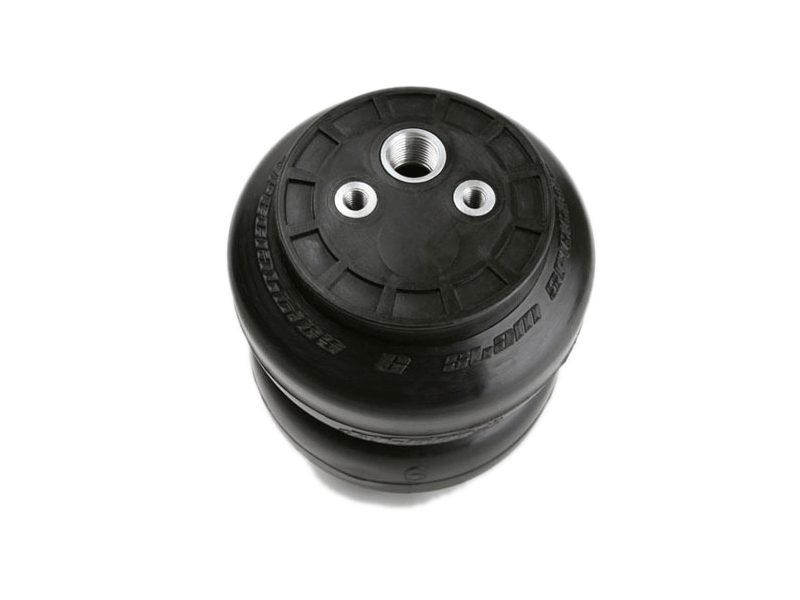

SLAM SPECIALTIES air springs are technologically advanced in all areas of design and performance. Bolt pattern compatible with Firestone and other air springs

• • 6″ diameter bag
  • Single 1/2″ NPT port
  • Rated @ 250psi
  • 6061-T6 CNC machined aluminum NPT port
  • Zinc plated steel threaded inserts
  • 2.7″ min. collapsed height
  • 11″ max. height
  • Internal bumpstops
  • Non-ballooning design
  • (2) 3/8″-16 mounting holes in the top plate
  • (3) 3/8″-16 mounting holes in the bottom plate
  • Replaces: 255c/2500

  • Designed & Manufactured by Slam Specialties
  • Made in the USA
