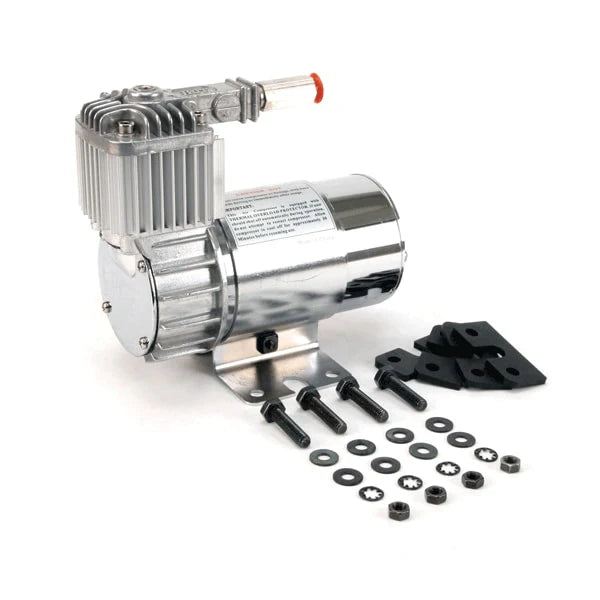

VIAIR's 100 Series comes with a 1.5 ft. stainless steel braided leader hose with 1/4” NPT swivel male fitting hose end and rubber isolated mounting feet as well as insulated electric terminals.

Note: Use thread sealant for proper installation.
Teflon tape is not recommended. Properly sealed,
recommended torque is 12 to 15 ft. lbs.



Included Parts:
- Check Valve
- Vibration Isolators
- Mounting Hardware
- Stainless Steel Braided Leader Hose
- Air Line for Remote Mount Air Filter
- Remote Mount Air Filter Assembly
- (2) Replacement Air Filter Elements
- Installation Instructions

- 12-Volt
- Permanent Magnetic Motor
- Duty Cycle: 15% @ 100 PSI
- Max. Working Pressure: 130 PSI
- Max. Air Tank Size: 1.0 Gallon
- Max. Amp Draw: 18 Amps
- Dimensions: 6.35"L x 3.3"W x 4.9"H
- Net Weight: 3.55 lbs.
