Coil replacement Primary Air Suspension 89-52220

Product Information

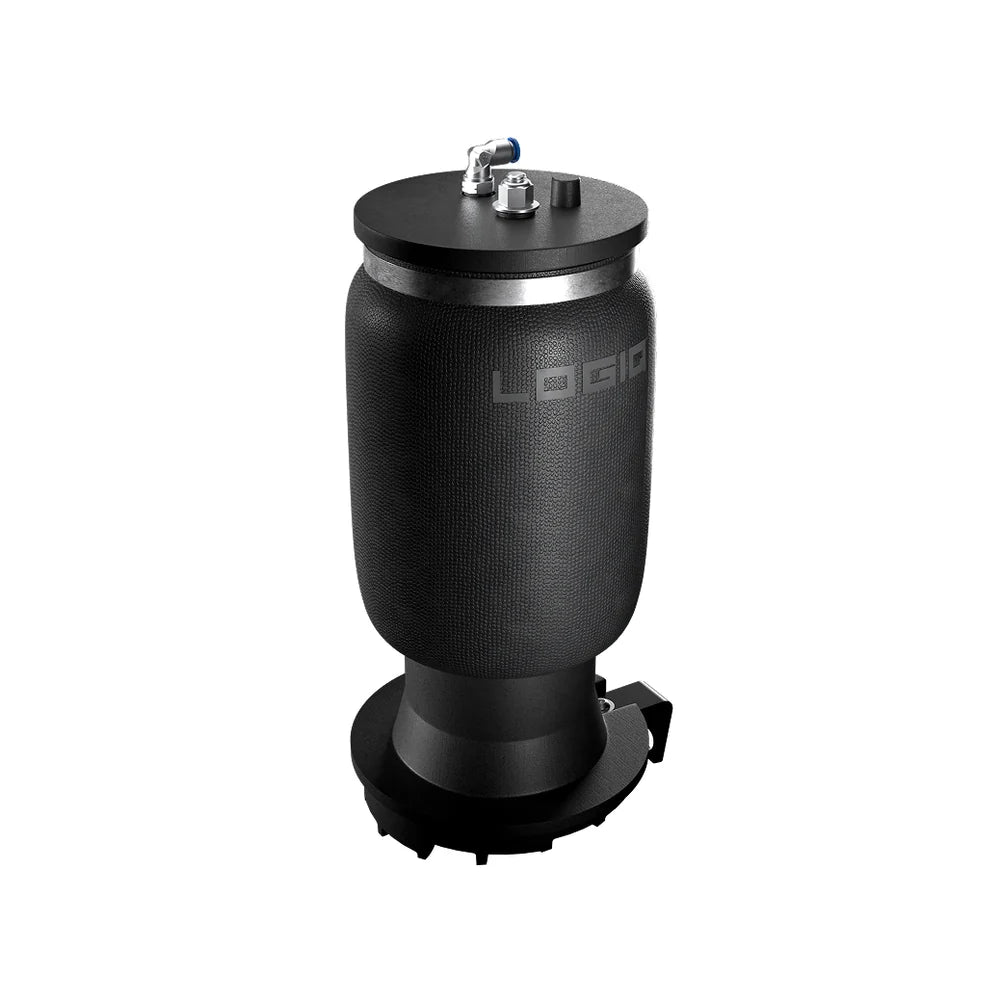

Upgrade your Toyota Tundra with LOGIQ’s Air Spring Kit—a coil replacement solution that swaps factory coils (or factory air) for primary air at the rear axle. Enjoy a smoother ride unloaded, superior load support when hauling, and adjustable height for easier loading or trailer hookup. Fits factory-height trucks and up to 3” lifts out of the box. With a 6,000 lb capacity at 150 PSI, it’s smarter air suspension for serious work.

Fitment Notes

Trucks equipped with Factory Air Suspension require additional adapter kit 89-52220-AET.

Ride Height = factory to +3". For lift amount greater than +3" to +6" add spacer kit 89-52220-3.

2022+ Toyota Tundra - Rear Spacer Kit For 3" to 6" Lifts 89-52220-3 – Air Ride Suspension Supplies

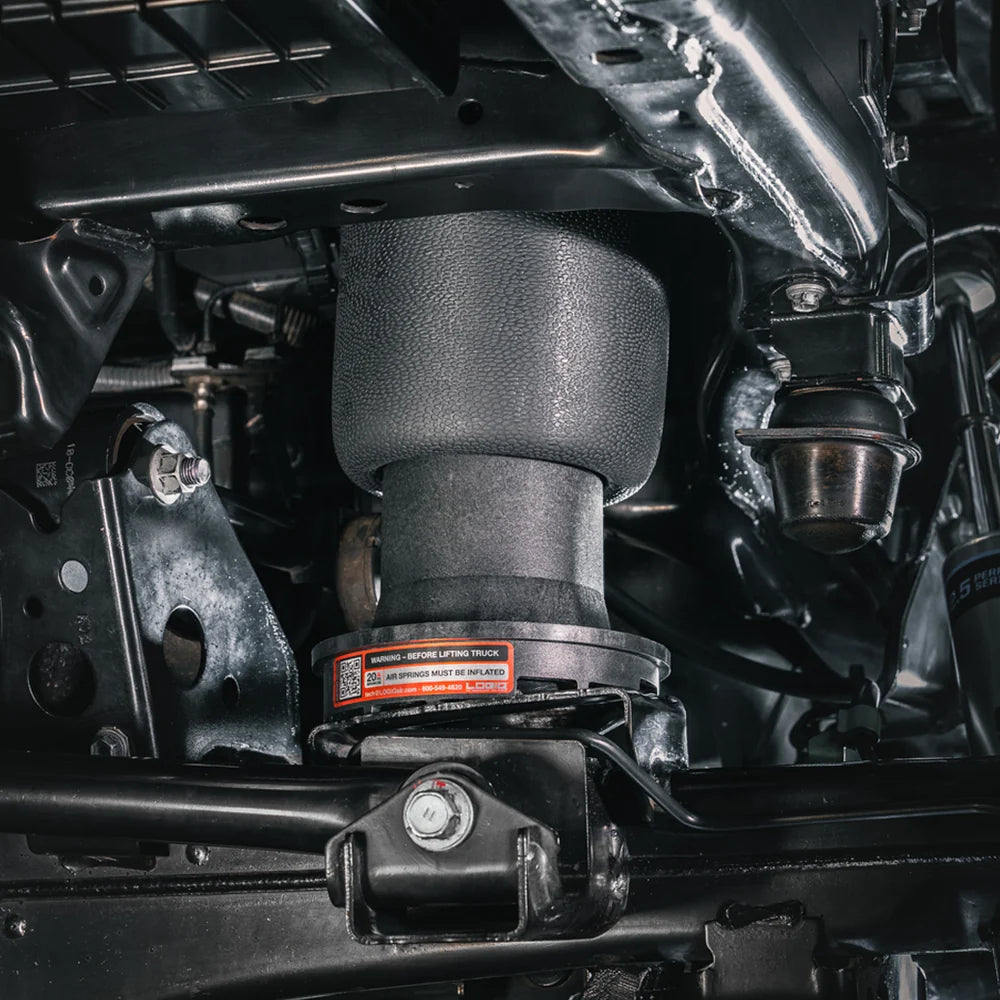

Air Spring Location: Axle Mounted Inboard Frame Rails
Air Spring Quantity: 2
Lifting Force: 6,000 lbs @ 150 psi
Payload Capacity: 3,500 lbs @ 150 psi
Maximum Pressure: 150 psi
Minimum Pressure: 20 psi

Installation Instructions
