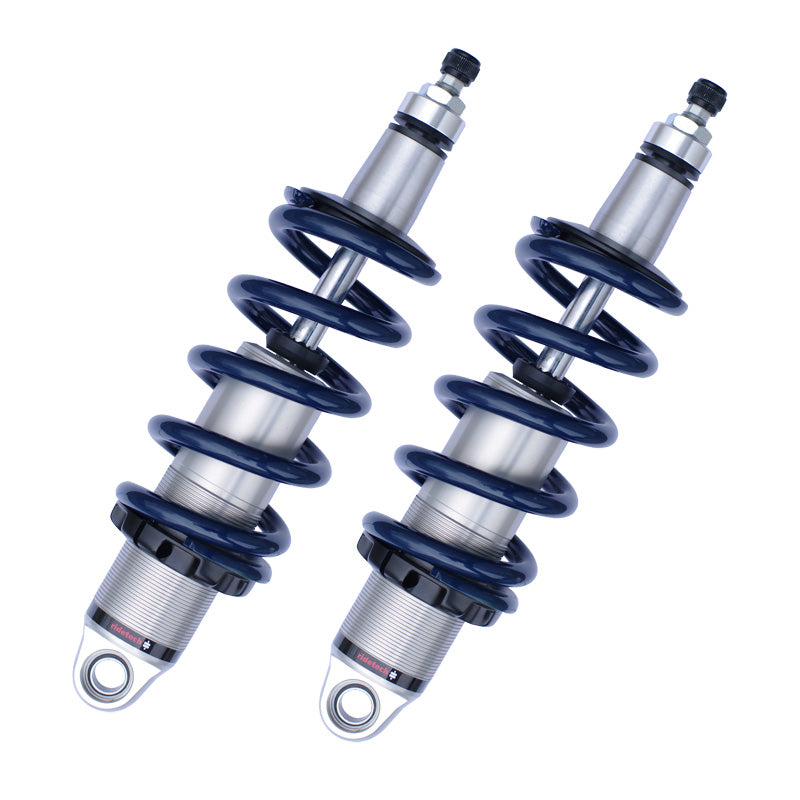

Universal HQ Series CoilOver Single Adjustable STUD/EYE
$1,395.00
DESCRIPTION
RideTech HQ Series universal CoilOvers provide high performance handling, exceptional ride quality and incomparable reliability. HQ Series Universal CoilOvers can be custom configured for street rods, customs pickup trucks, pro-street cars and so much more. The quality and performance are underscored by RideTech's world class technical support and a million and one mile warranty. we're here to help you choose the right coil-overs for your application. Likewise, we guarantee that they'll last. HQ Series CoilOvers feature 24-position rebound adjustment to to help you fine tune the shocks to your driving preferences and vehicle demands. Universal CoilOvers are available in six lengths and multiple mounting configurations to adapt to nearly any application.

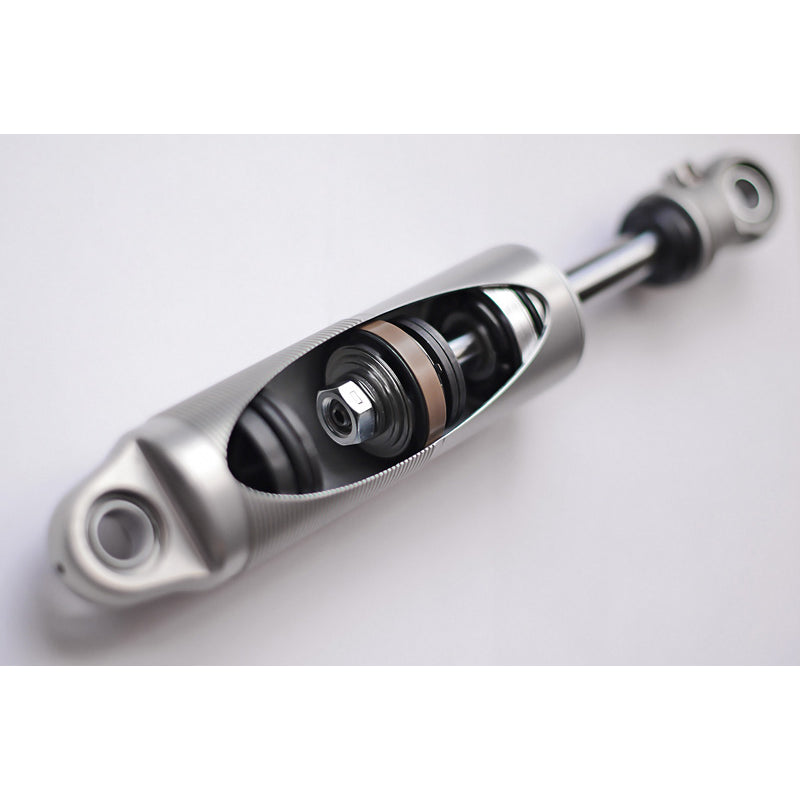

- Monotube gas pressure design is far superior to twin-tube.
- 24-Position Rebound Adjustment
- Exclusive 1,000,001 Mile warranty
- Impact forged aluminum body provides the best combination of strength, light weight and reliable service.
- Larger 1.834" piston significantly larger than twin tube pistons.
- Heavy duty 5/8" chromed shaft.
- Bodies are anodized for long lasting corrosion-resisten appearance.
- Double sealed rod guide with dust cover eliminates oil leakage.
- CNC machined billet aluminum adjusting hardware.
- Unique fine-threaded pinch clamp height adjuster provides easy adjustment.
Included Components
1- Aluminum monotube shock
1- Upper spring seat
1- Lower adjuster nut
1- Upper spring seat clip
1- set of 5/8”-1/2” bearing spacer kit
1- Delrin Washer set of 2
PLEASE CALL THE SHOP FOR SPRING RATE STOCK
IF NOT IN STOCK 6-8 WEEKS SEA FREIGHT
OR 1 WEEK FOR AIR FREIGHT AT EXTRA COST
Coil-Over Dimensions
| Shock | Mounting | Compressed | Ride | Extended | HQ Spring | |
| Stroke | Style | Height | Height | Length | Length | |

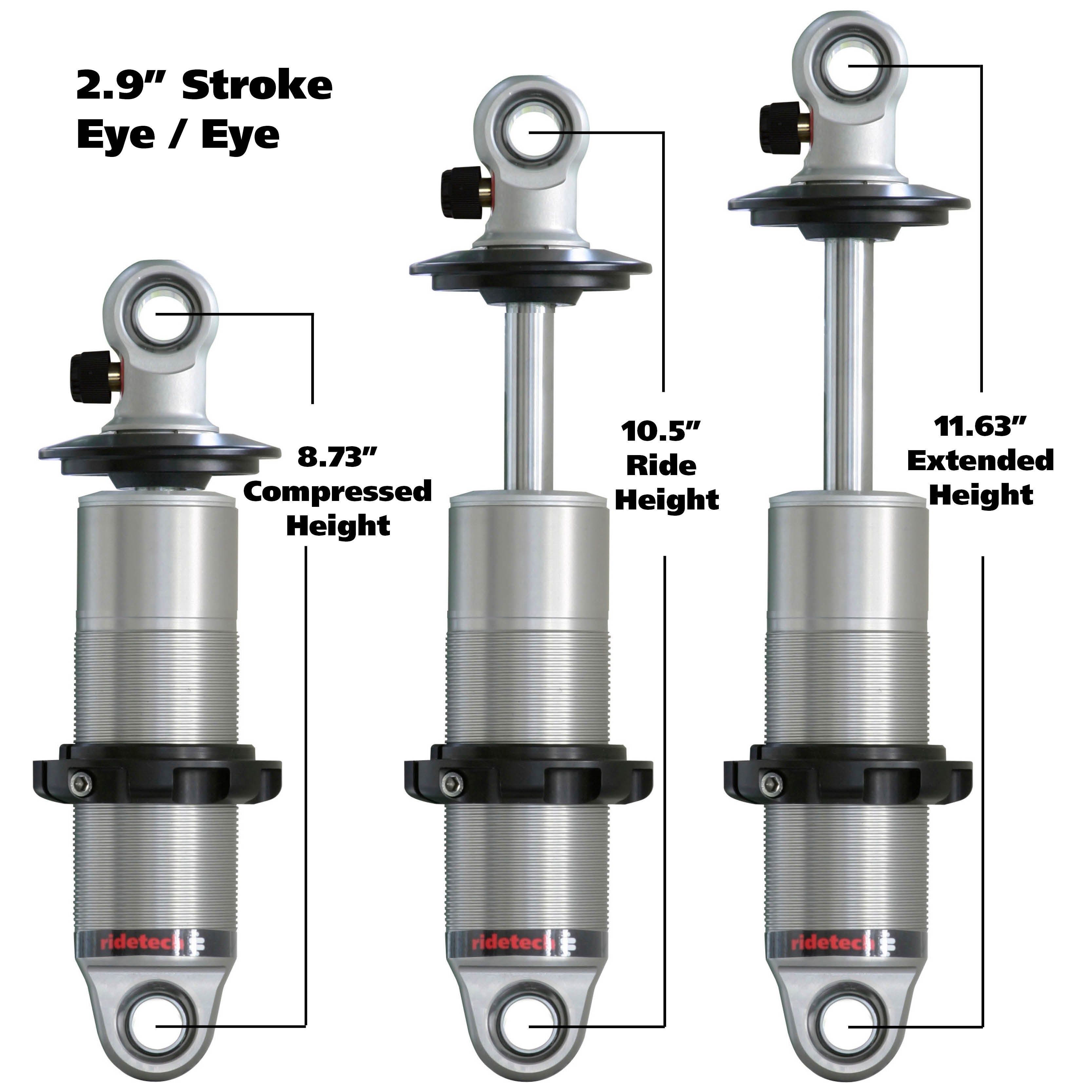

| 2.9 | Eye/Eye | 8.73" | 10.5" | 11.63 | 8" | |
| 3.6 | Eye/Eye | 9.43" | 11.5" | 13.03 | 8" | |
| 4.1 | Eye/Eye | 10.13" | 12.5" | 14.23 | 10" | |
| 5.2 | Eye/Eye | 11.23" | 14.5" | 16.43 | 12" | |
| 6.3 | Eye/Eye | 12.33" | 16" | 18.63 | 14" | |
| 6.9 | Eye/Eye | 13.13" | 17.25" | 20.03 | 14" | |
| 2.9 | Stud/Eye | 9.03" | 10.8" | 11.93 | 8" | |
| 3.6 | Stud/Eye | 9.73" | 11.8" | 13.33 | 8" | |
| 4.1 | Stud/Eye | 10.63" | 12.8 | 14.53 | 10" | |
| 5.2 | Stud/Eye | 11.53" | 14.8 | 16.73 | 12" | |
| 6.3 | Stud/Eye | 12.63" | 16.3 | 18.93 | 14" | |
| 6.9 | Stud/Eye | 13.43" | 17.55 | 20.33 | 14" |
SEE RECOMMENDED PARTS BELOW FOR COIL SPRINGS
Know your vehicle weights... Try our Spring Rate Calculator
Don't know your vehicle weights... Vehicle Weight Data Base
Looking for more info.. Choosing The Right Coil-Over
