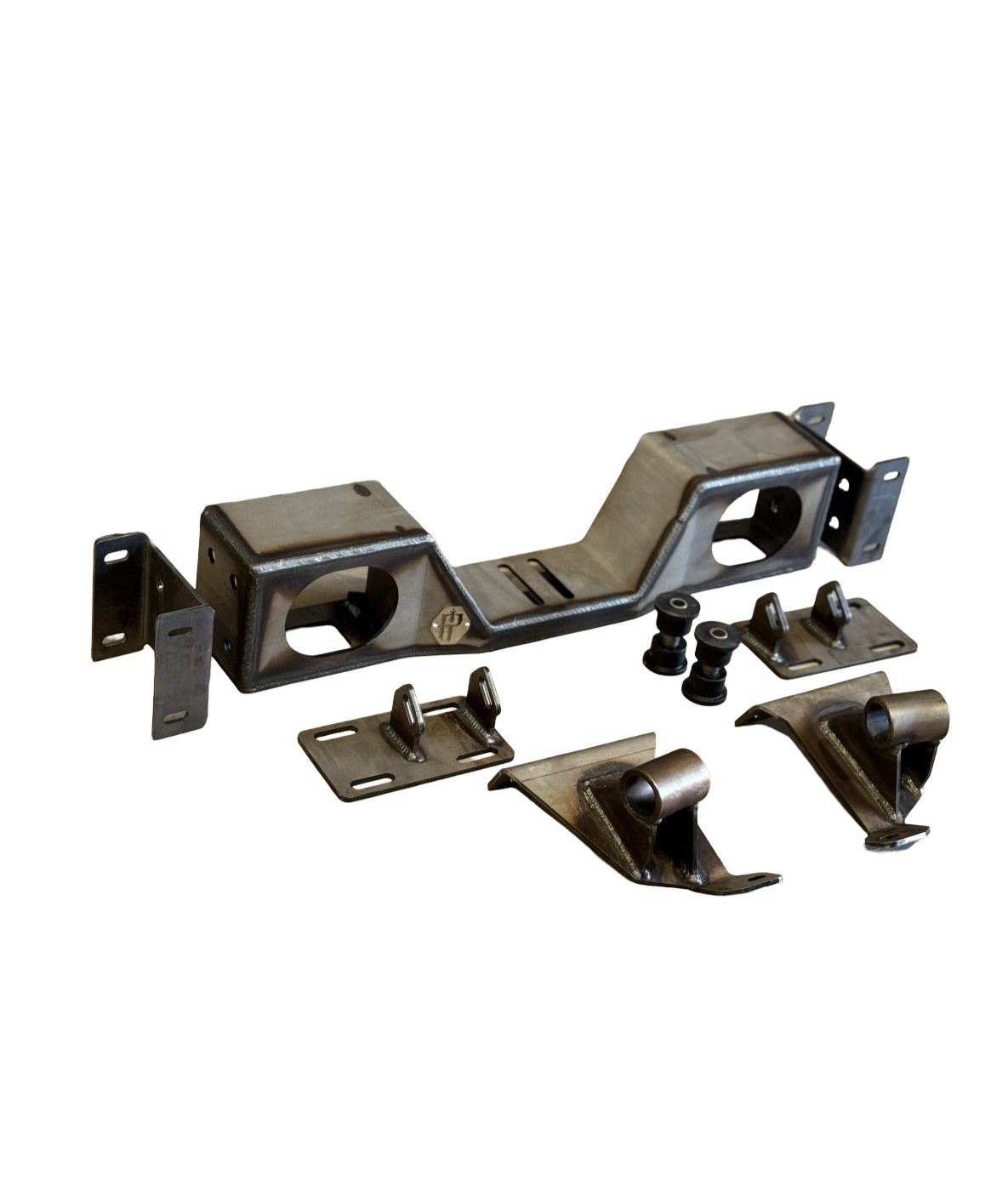

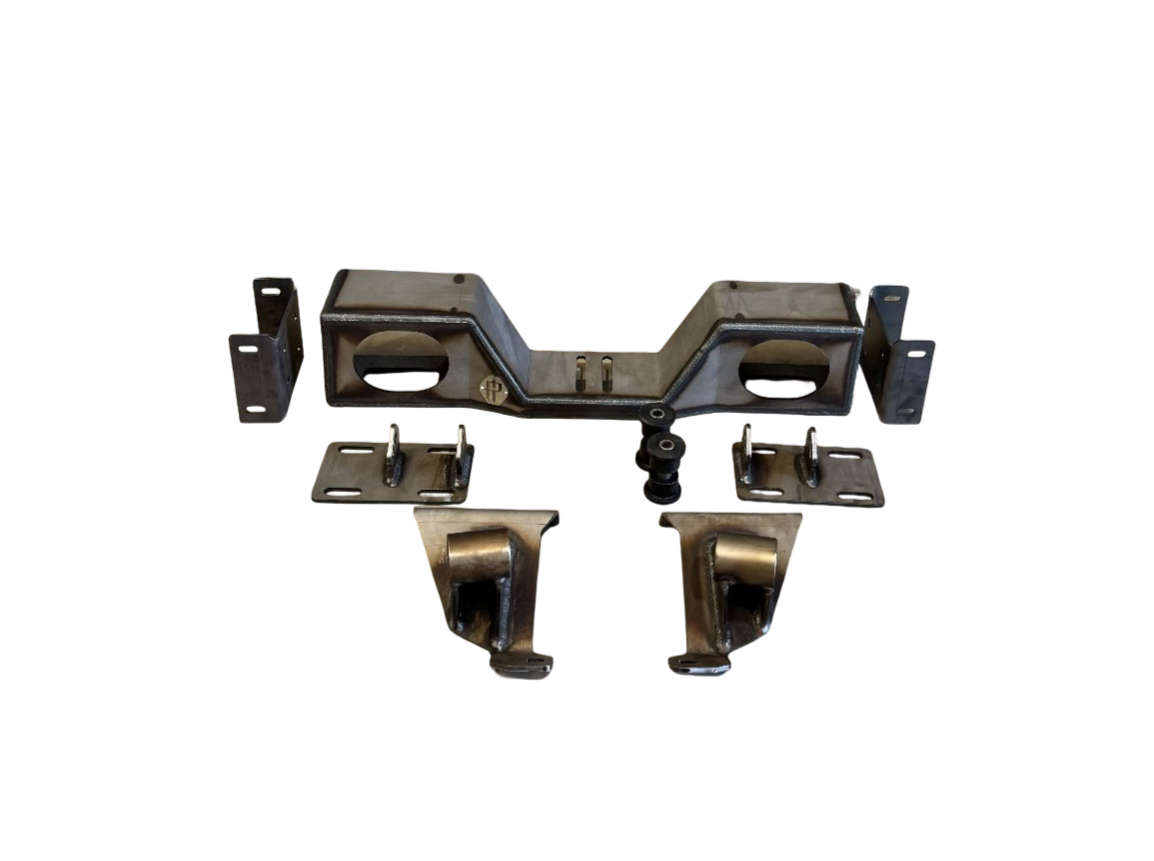

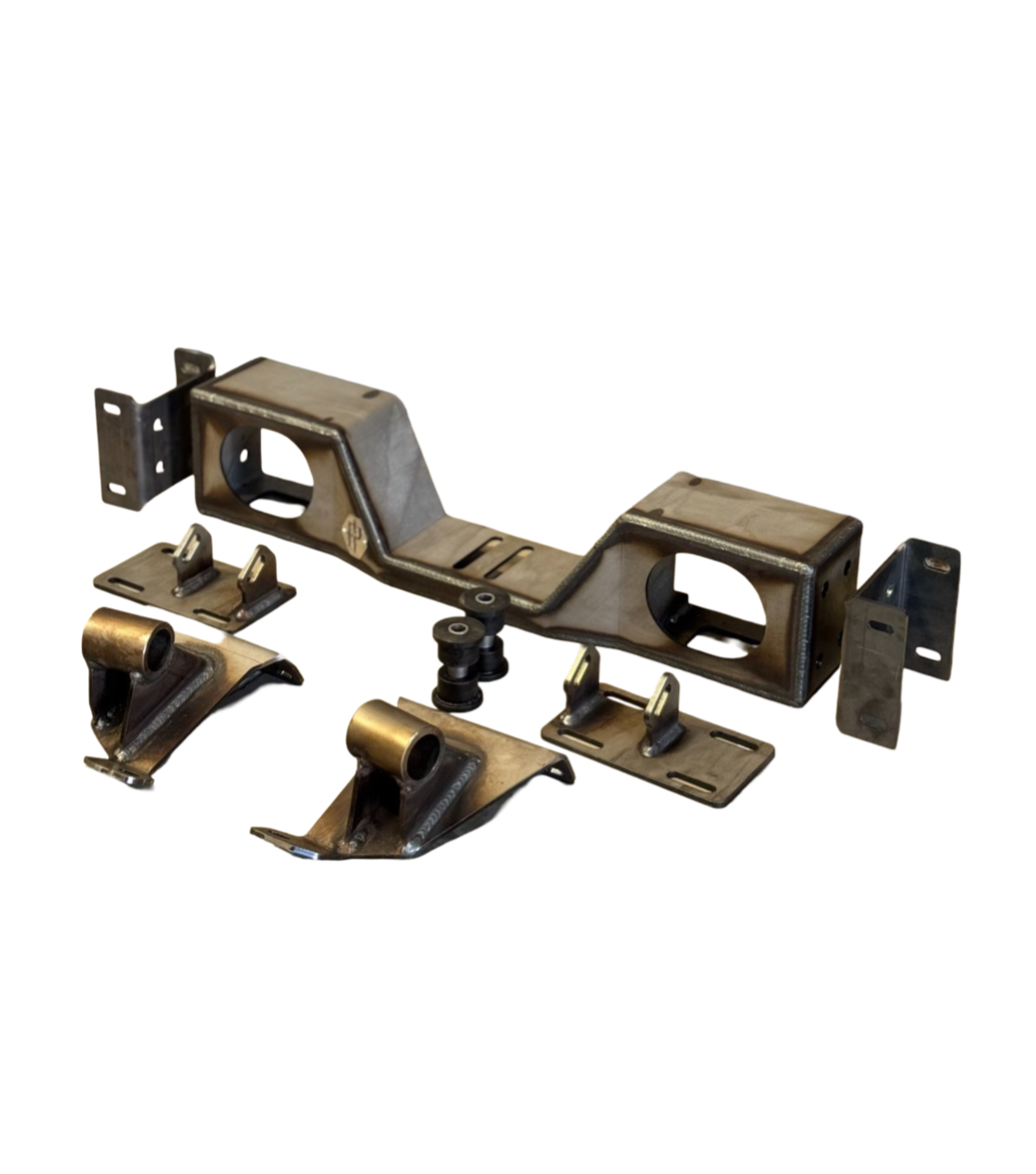

LS swap your ’63–’72 C10, C20, or Suburban the easy way with our all-in-one motor mount and transmission crossmember kit.

Engineered from a  6mm and 5mm steel plate combo, this setup offers 75mm of adjustment, letting you position your engine and transmission exactly where you want them.

The crossmember features a removable center section for easy transmission servicing and exhaust cutouts to fit up to 3.5” pipes—keeping everything tucked high for maximum clearance. Designed to work with factory low-mount A/C compressors, this kit delivers a perfect blend of strength, adjustability, and a clean installation.

Key Features:

• Heavy-duty 6mm / 5mm steel plate construction – built to last

• Adjustable motor mounts with of movement (75mm)

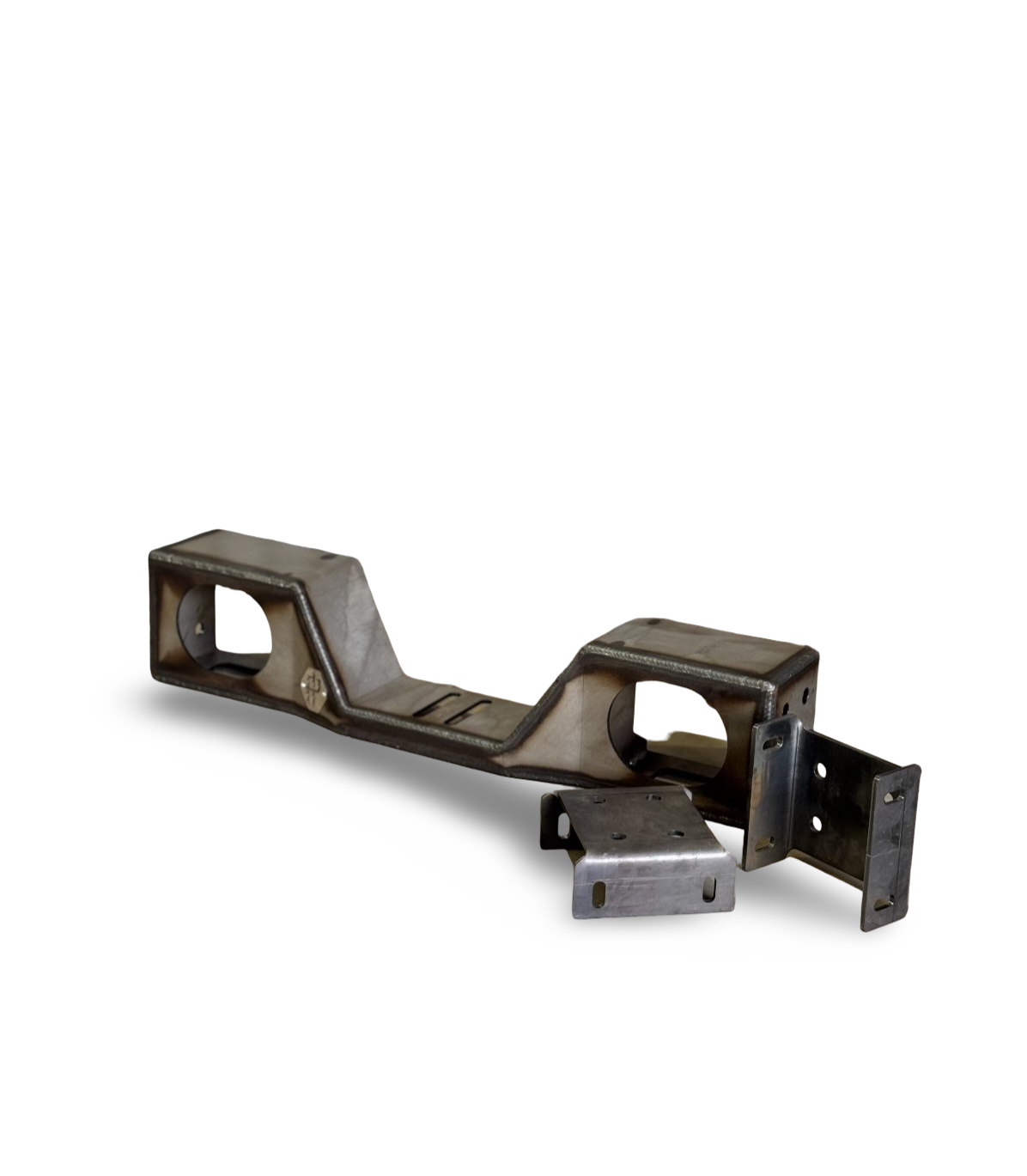

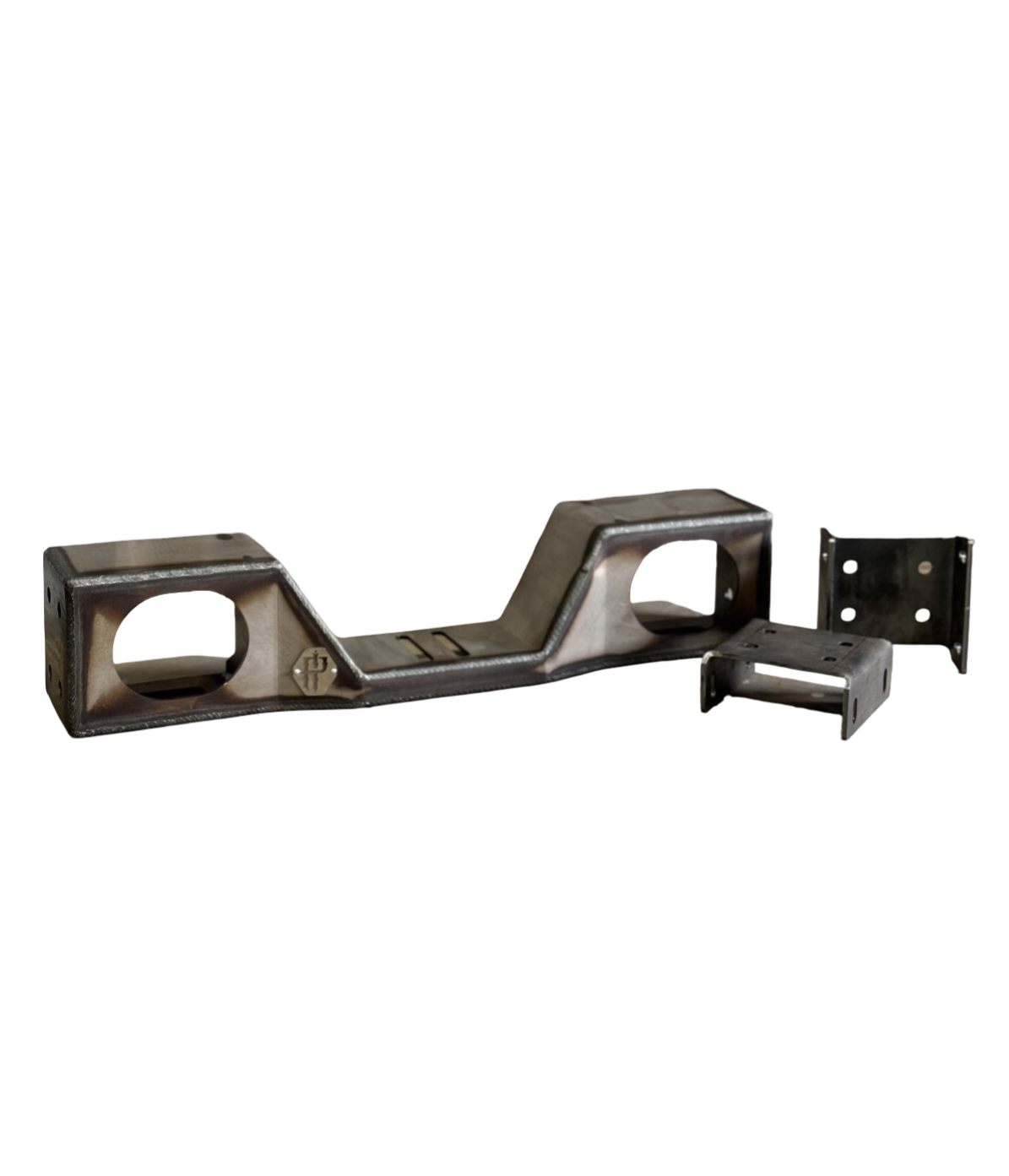

• 3-piece transmission crossmember with removable center section

• Exhaust pass-throughs for up to 3.5” tubing

• Works with factory LS low-mount A/C compressors and low-mount alternators

• Supplied in raw steel finish or black Powdercoat

• 100% Australian Made

Kit Includes:

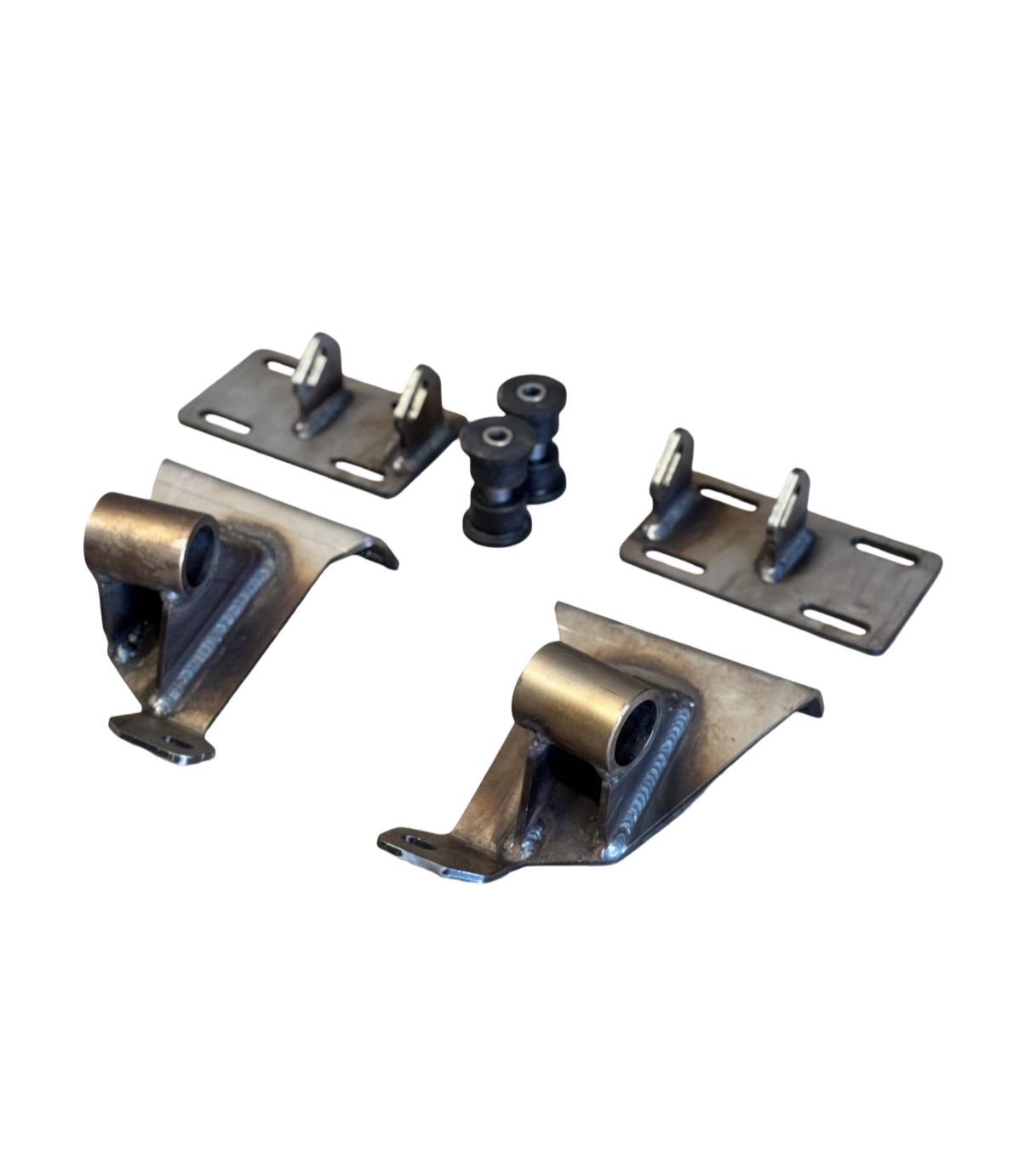

• Polyurethane motor mounts

• Engine and transmission brackets

• High-tensile hardware

Vehicle Applications:

• 1963–1972 Chevy/GMC C10, C20 & Suburban (2WD)

• Gen 3 & Gen 4 LS-based engines: 4.8L, 5.3L, 6.0L, 6.2L

• GM Automatic: TH350, TH400, 4L60, 4L80, 6L80

• GM Manual: TKO600, T56
