GSI 1963-72 C10 Rear Back Half Kit

$9,095.00

This items needs to be ordered in

Please call or email the shop for lead times 03 97295556 info@airide.com.au

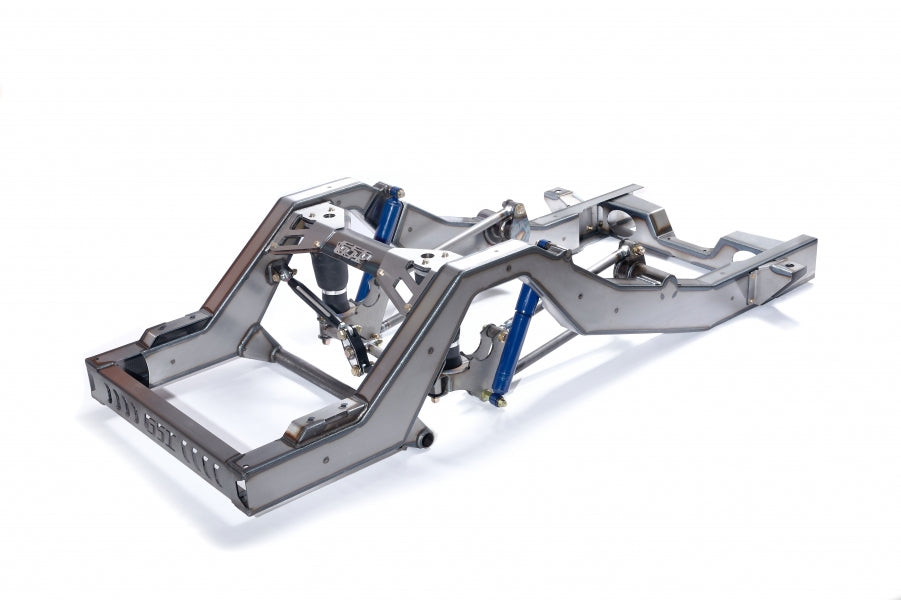

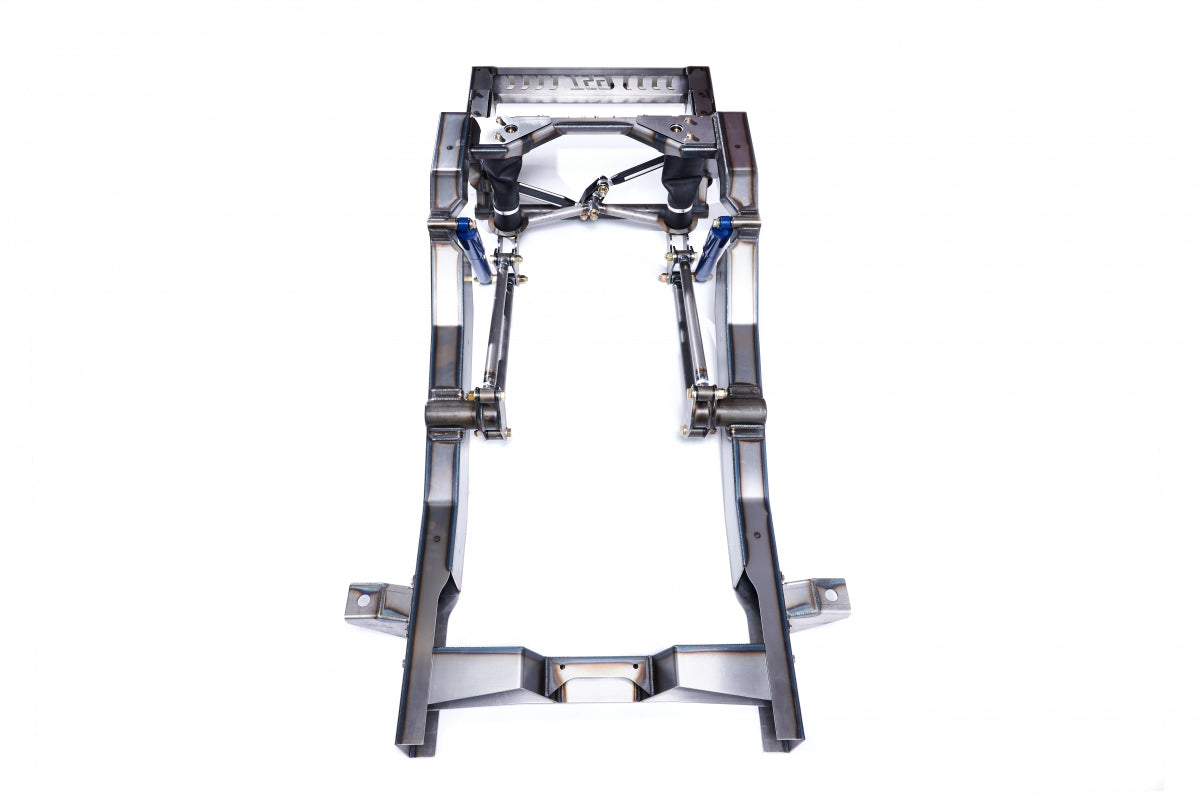

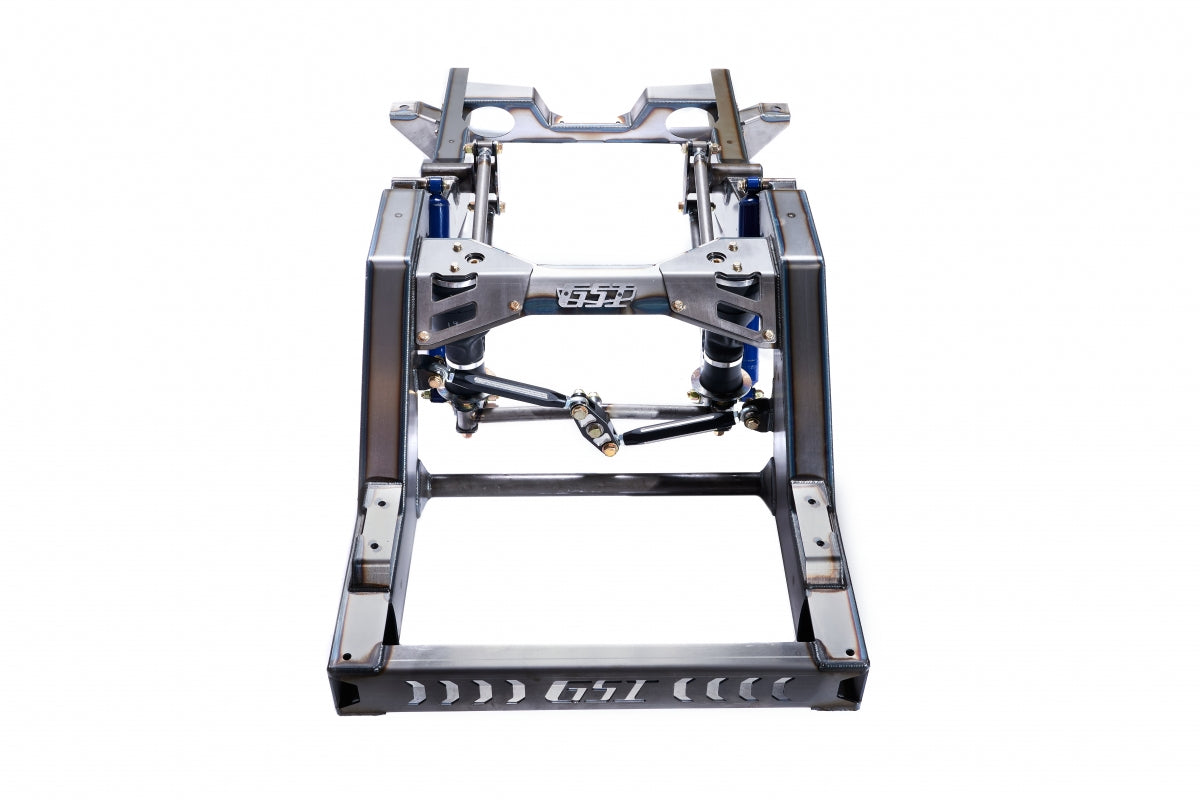

The GSIMFAB 63-72 C10 air ride backhalf has been designed and developed using the latest technology available in manufacturing. By laser scanning an OEM chassis is the best way to achieve proper fitment of all chassis components. High quality Amada CNC laser and press brake machines ensures all parts will fit together at the welding bench which translates all the way down to the end user / installer. We also combine a full in house CNC Machine shop to enable us to manufacture every piece to our strict quality standards. This is the most complete kit on the market.

Notes:

Designed to lay frame on up to a 31" tall tire.

Air Bags, shocks, & 4 Link are all mounted inboard to accommodate up to 15" wide wheels

Will convert a factory longbed chassis to shortbed wheelbase

can also be used on factory shortbed chassis

Options:

Select Model Year: 63-66 Model Year
Shipping Lift Gate: NO LIFTGATE
RideTech Shock Upgrade: Standard Shocks
Sway Bar: No Sway Bar

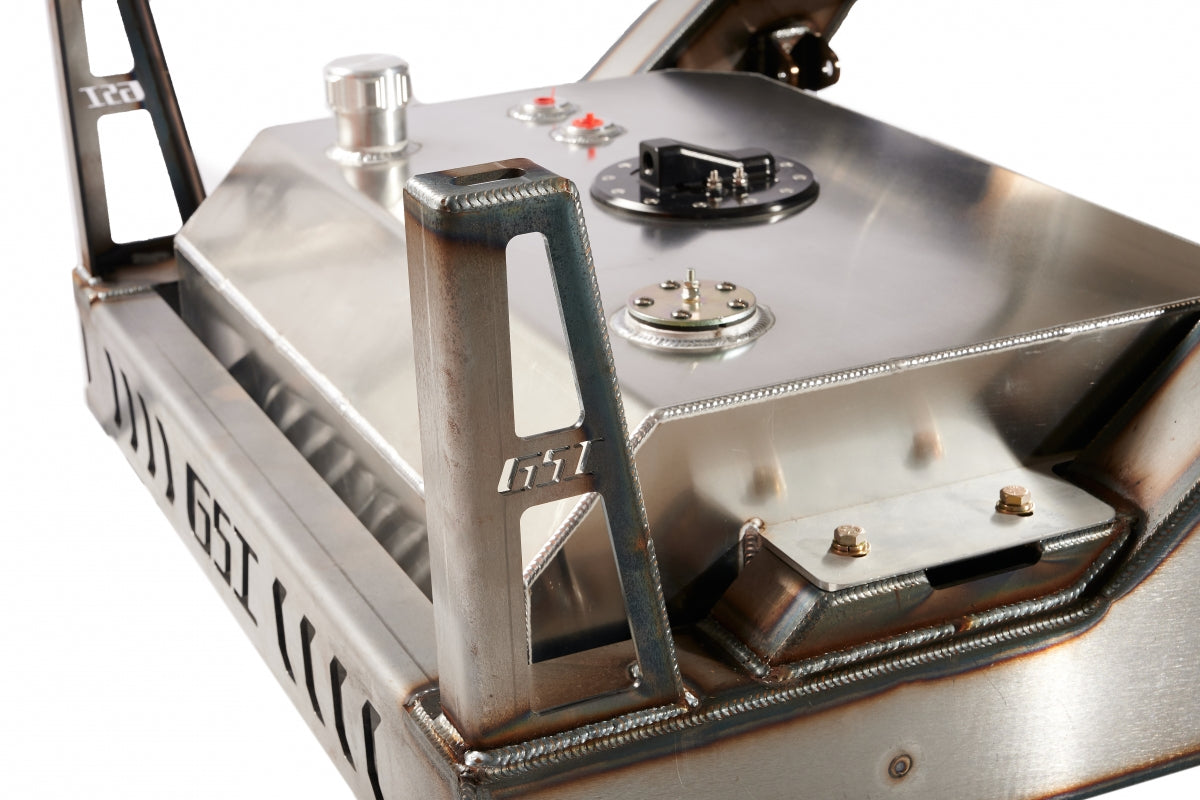

Fuel Tank: NO TANK
Longbed or Shortbed
Bed Risers: Bed Risers -

Kit Includes

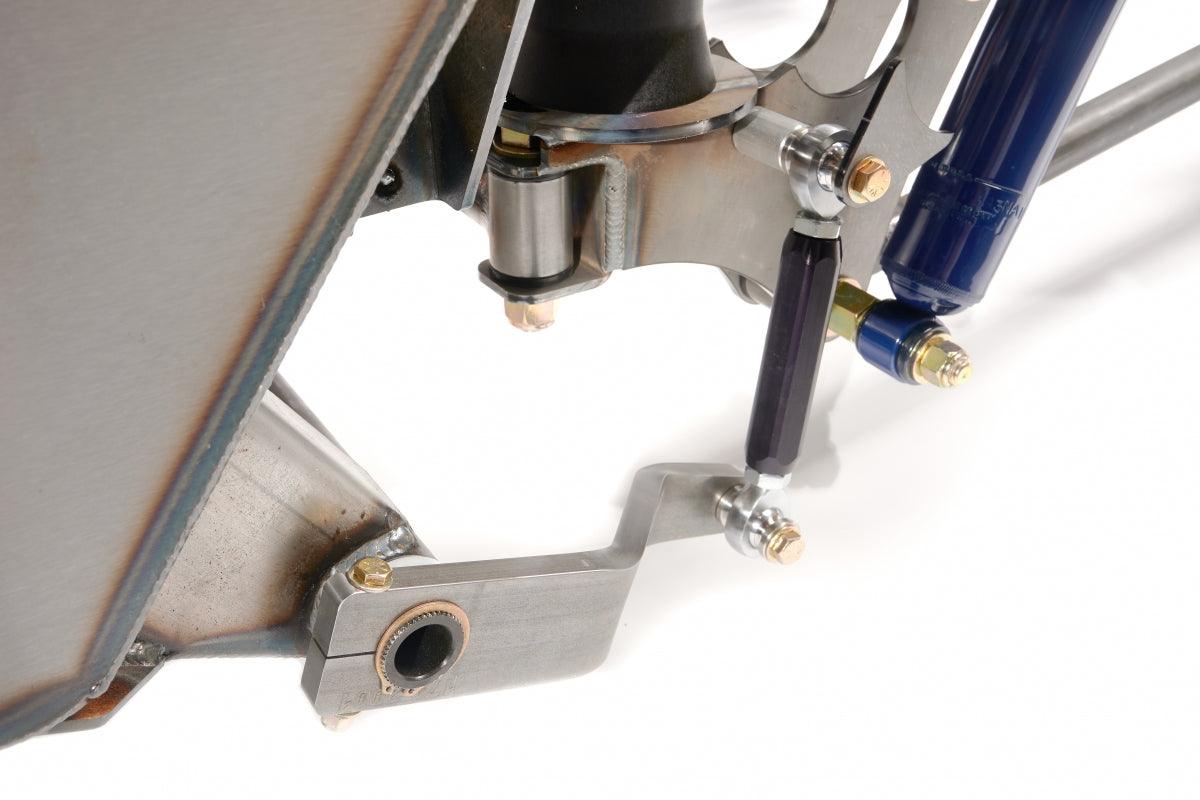

4 Link Hangers
4 Link Bars
L&R 4 Link Rod Ends
Polly Bushings
Steel Crush Sleeves
Firestone Air Bags
Grade 8 Hardware
Rear Frame Rails
Rear Bridge
Billet Watts Link
FK Rod Ends
Precision Roller Bearings
Rear Shocks
Detailed Instructions
