Part Number: 80307BL
The DUAL VMS PRO System is our top-tier air management solution. We've taken our Dual VMS PLUS system and enhanced it. With a custom engineered 4-Way hose system, dual high-flow couplers, a digital gauge and a dump valve, it transforms your onboard air into a fully integrated station for precise inflation and deflation. Allows for fast deflation and inflation for up to 4 tires. The DUAL VMS PRO system is the perfect solution for the novice and or for hard core off-roader.
The Dual VMS PRO Systems are high-performance onboard air systems designed to provide high CFM and fast tire fill with unsurpassed durability. The custom Lock Mount bracket allows you to mount just about anywhere. These systems can be used for tire inflation, air tools, air horns, air lockers, air bags and inflatables of all kinds.
444C (200 PSI): Ideal for tire inflation management, air suspension, and general needs where 200PSI is needed. Reliable and affordable. 100% Duty Cycle @ 100PSI.
**NOTE: Assembly required
- CFM: 5.12 @ 0 PSI
- 12-Volt
- Permanent Magnetic Motor
- Duty Cycle: 33% @ 100 PSI
- Duty Cycle: 100% @ 40 PSI
- Max. Working Pressure: 150 PSI
- Max. Air Tank Size: 10.0 Gallon
- Combined Max. Amp Draw: 60-Amps
- Ingress Protection Rating: IP67
- Max Ambient Temp: +158°F
- Min Ambient Temp: -40°F
- Dimensions:9″L x 4″W x 6.75″H (Each Unit)
- Net Weight: 19 lbs.

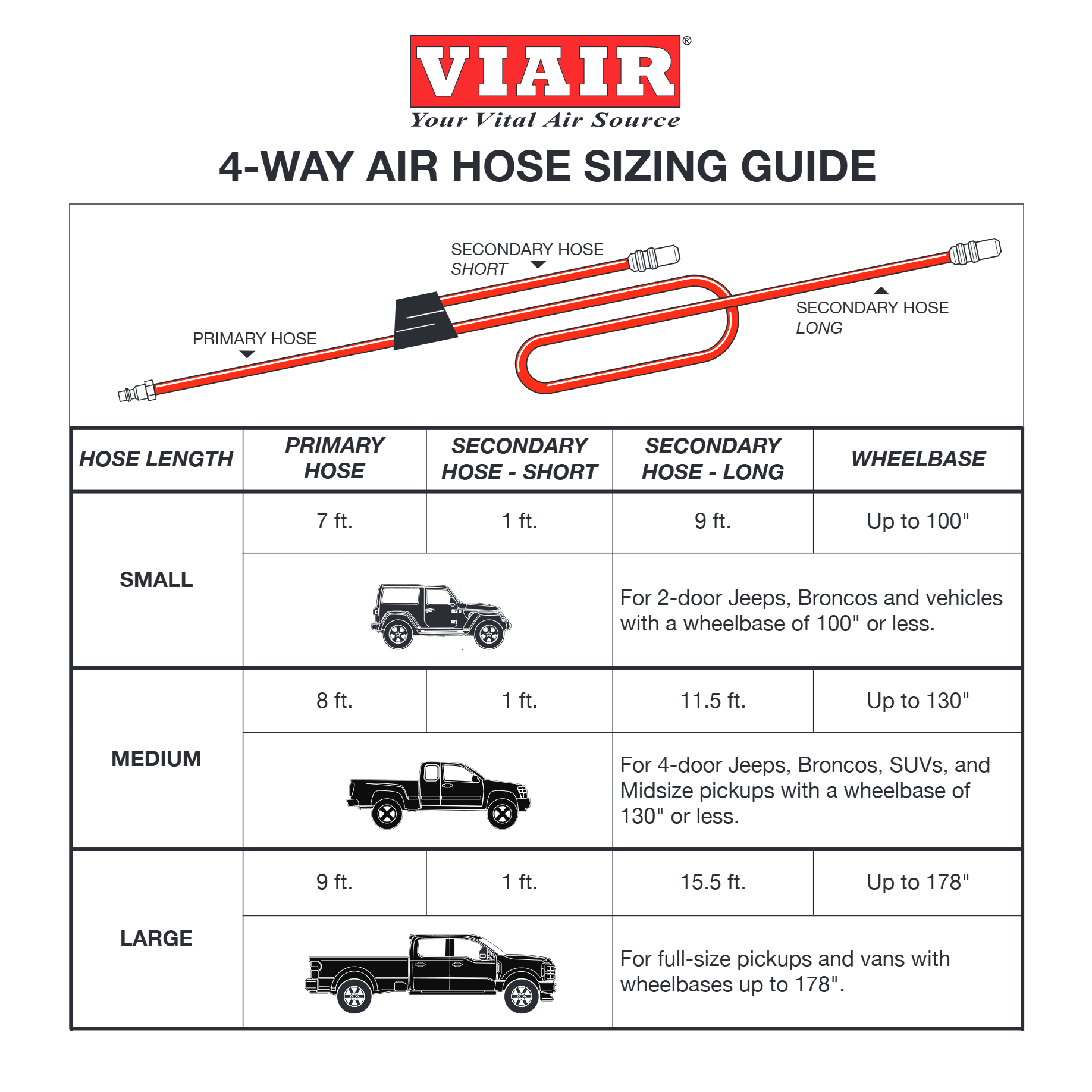

- 4 Way hose system Large 130" and longer wheelbase
FEATURES:
- (2) 400C (Stealth Black or Chrome) Compressors
w/ Thermal Overload Protectors
- (2) Stainless Steel Braided Leader Hoses with Inline Check Valve
- (2) Air Filter Assemblies
- (2) Sets of Spare Air Filter Elements
- (2) Sets of Nuts, Bolts, Washers and Lock Washers
DUAL 444C SPECS:
- CFM: 3.88 @ 0 PSI
- 12-Volt
- Permanent Magnetic Motor
- Duty Cycle: 100% @ 100 PSI (50% @ 200 PSI)
- Max. Working Pressure: 200 PSI
- Max. Air Tank Size: 10.0 Gallon
- Combined Max. Amp Draw: 46-Amps
- Ingress Protection Rating: IP67
- Max Ambient Temp: +158°F
- Min Ambient Temp: -40°F
- Dimensions:10.87″L x 4.2″W x 7.06″H (Each Unit)
- Net Weight: 23 lbs.
FEATURES:
- (2) 444C (Stealth Black or Chrome) Compressors
w/ Thermal Overload Protectors
- (2) Stainless Steel Braided Leader Hoses with Inline Check Valve
- (2) Air Filter Assemblies
- (2) Sets of Spare Air Filter Elements
- (2) Sets of Nuts, Bolts, Washers and Lock Washers
KIT FEATURES:
- Allows for 4 tire fill
- Available in 150PSI and 200PSI Configuration
- Provides full air control (Inflate and Deflate)
- Flexibility in mounting, just about anywhere
