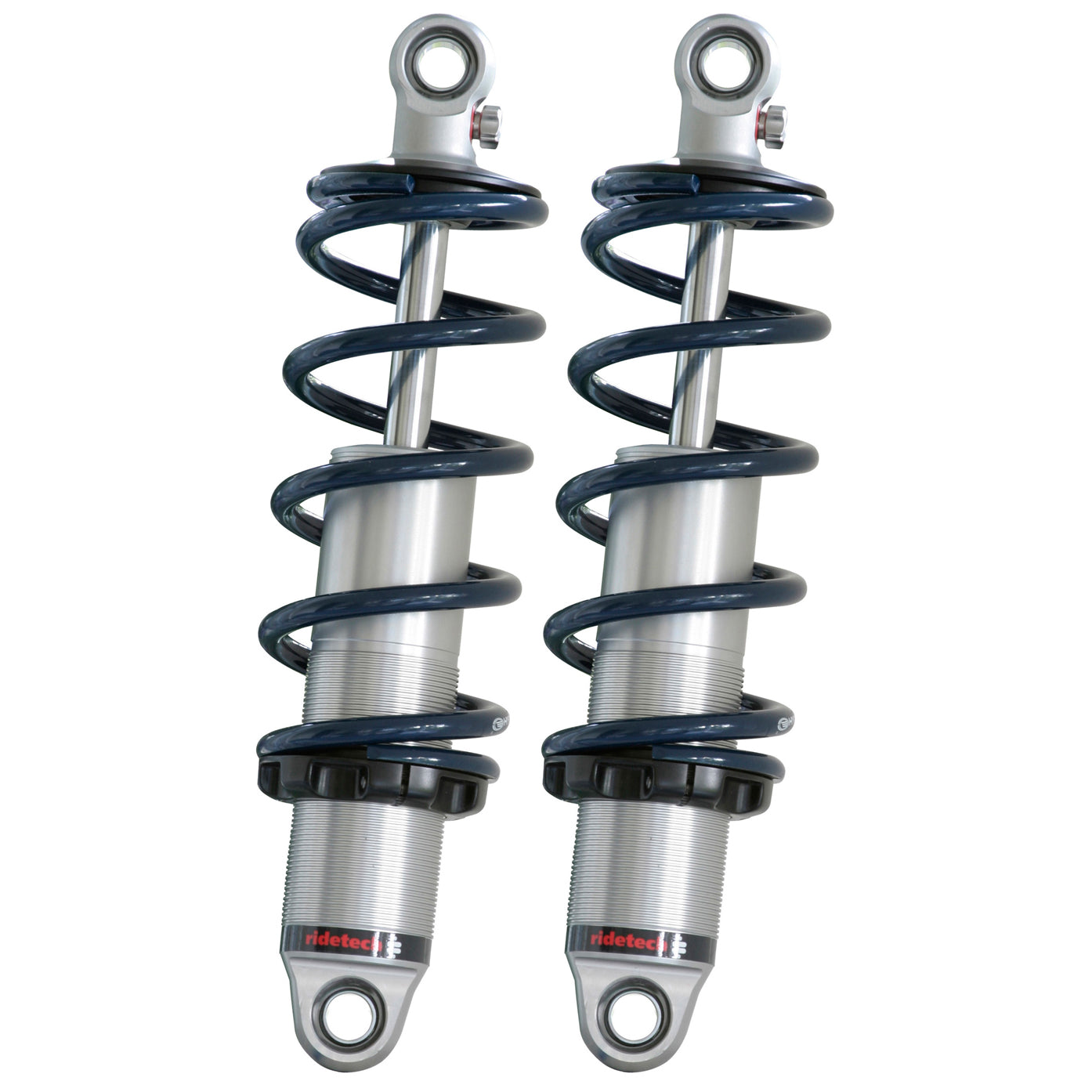

Universal HQ Series CoilOvers EYE/EYE

$1,345.00


DESCRIPTION

RideTech HQ Series universal CoilOvers provide high performance handling, exceptional ride quality and incomparable reliability. HQ Series Universal CoilOvers can be custom configured for street rods, customs pickup trucks, pro-street cars and so much more. The quality and performance are underscored by RideTech's world class technical support and a million and one mile warranty. we're here to help you choose the right CoilOvers for your application. Likewise, we guarantee that they'll last.  HQ Series CoilOvers feature 24-position rebound adjustment to to help you fine tune the shocks to your driving preferences and vehicle demands. Universal CoilOvers are available in six lengths and multiple mounting configurations to adapt to nearly any application.
  • Monotube gas pressure design is far superior to twin-tube.
  • 24-Position Rebound Adjustment
  • Exclusive 1,000,001 Mile warranty
  • Impact forged aluminum body provides the best combination of strength, light weight and reliable service.
  • Larger 1.834" piston significantly larger than twin tube pistons.
  • Heavy duty 5/8" chromed shaft.
  • Bodies are anodized for long lasting corrosion-resisten appearance.
  • Double sealed rod guide with dust cover eliminates oil leakage.
  • CNC machined billet aluminum adjusting hardware.
  • Unique fine-threaded pinch clamp height adjuster provides easy adjustment.


Included Components
2- Aluminum monotube shock
2- Upper spring seat
2- Lower adjuster nut
2- Upper spring seat clip
2- set of 5/8”-1/2” bearing spacer kit

4- Delrin Washers

2 - 2.5" I.D. Hyperco spring



PLEASE CALL THE SHOP FOR SPRING RATE STOCK

IF NOT IN STOCK 6-8 WEEKS SEA FREIGHT

OR 1 WEEK FOR  AIR FREIGHT AT EXTRA COST



Coil-Over Dimensions

Shock
Mounting
Compressed
Ride
Extended
HQ Spring

Stroke
Style
Height
Height
Length
Length

2.9 Eye/Eye 8.73" 10.5" 11.63 8"
3.6 Eye/Eye 9.43" 11.5" 13.03 8"
4.1 Eye/Eye 10.13" 12.5" 14.23 10"
5.2 Eye/Eye 11.23" 14.5" 16.43 12"
6.3 Eye/Eye 12.33" 16" 18.63 14"
6.9 Eye/Eye 13.13" 17.25" 20.03 14"
2.9 Stud/Eye 9.03" 10.8" 11.93 8"
3.6 Stud/Eye 9.73" 11.8" 13.33 8"
4.1 Stud/Eye 10.63" 12.8 14.53 10"
5.2 Stud/Eye 11.53" 14.8 16.73 12"
6.3 Stud/Eye 12.63" 16.3 18.93 14"
6.9 Stud/Eye 13.43" 17.55 20.33 14"






Know your vehicle weights... Try our Spring Rate Calculator

Don't know your vehicle weights... Vehicle Weight Data Base

Looking for more info.. Choosing The Right Coil-Over
