Slam Specialties RE-6

$239.00

SLAM SPECIALTIES air springs are technologically advanced in all areas of design and performance. Bolt pattern compatible with Firestone and other air springs

  • Rated at much higher pressures - critical for front end installations on heavy V8 vehicles
  • Non-ballooning, stiffer bellows ensure that more force is exerted through the centerline of the airspring to lift the vehicle straight up - this is an important feature of bellow design as the front control arms are at a "mechanically disadvantaged point" when the vehicle is lowered.
  • Superior end plate design to all other airsprings making it virtually impossible for separation to occur even when unrestrained at maximum pressure!
  • Unique internal bump stop prevents rubber bellow damage from constantly deflating airspring to zero pressure (see image below)




Capacity per airspring @ 110psi = 2800lbs

  • 6″ diameter bag
  • Rated @ 200psi
  • Minimum height = 2.9"
  • Installed height approx = 6.0"
  • Maximum height = 10.0"
  • Single 1/2" port
  • Internal bumpstops
  • Non-ballooning design

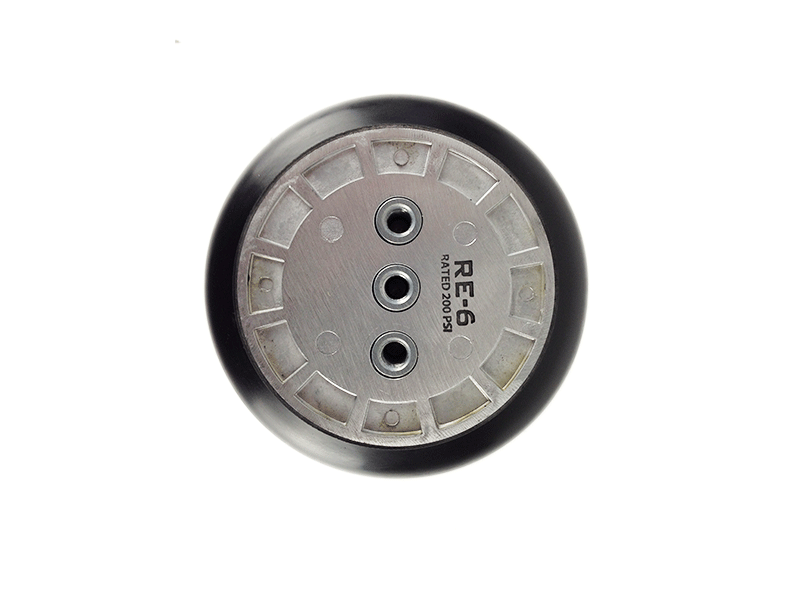

  • (2) 3/8″-16 Mounting Holes Top

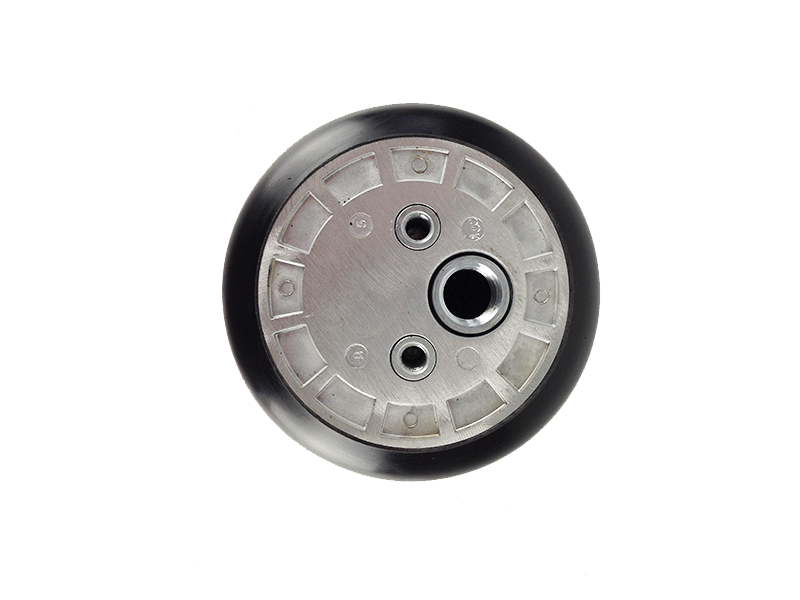

  • (3) 3/8″-16 Mounting Holes Bottom
  • Chemically bonded aluminum/zinc end closure plates
  • Replaces: 255c/2500
  • Sold Individually
  • Designed & Manufactured by Slam Specialties
  • Made in the USA
